Ground Foundation

The foundation is the first decision made on any solar project site — and the wrong choice costs weeks of rework. As the primary load-bearing and grounding element of the entire mounting structure, ground piles must match actual soil conditions precisely: bearing capacity requirements, corrosion exposure class, and installation method all vary by site.

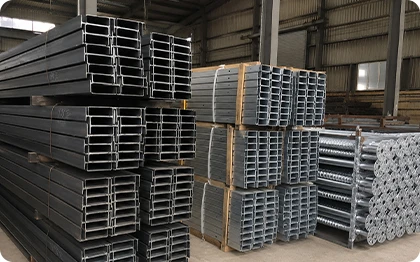

Winture manufactures C-beam, H-beam, and screw pile foundations from Q355B/Q420B and ASTM-grade steel, with all sections hot-dip galvanized to ≥85μm per ISO 1461. Our in-house CNC fabrication lines produce profiles to strict dimensional tolerances, and our ISO-certified laboratory verifies chemical composition and mechanical properties on every incoming coil batch. With 30,000 MT monthly production capacity, we support EPC contractors on tight schedules — from single-site orders to multi-site framework supply agreements.

Learn More

01

What Is a Solar Ground Foundation?

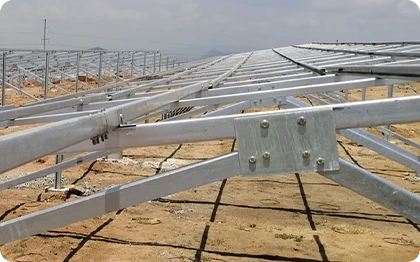

Ground foundations — also called ground piles or column posts — are the steel elements driven or embedded into the soil to anchor the entire solar mounting structure. They transfer all vertical dead loads (panel + racking weight) and lateral dynamic loads (wind, seismic) from the structure down into stable ground.



Getting the pile type wrong at this stage creates structural risk and delays. Winture's engineering team reviews geotechnical data alongside project specs to recommend the right pile type, embedment depth, and galvanizing grade before fabrication begins — at no additional charge.

02

ISO-Certified Laboratory

All Winture ground foundation products undergo systematic laboratory testing — from incoming raw material coils through to finished galvanized sections.

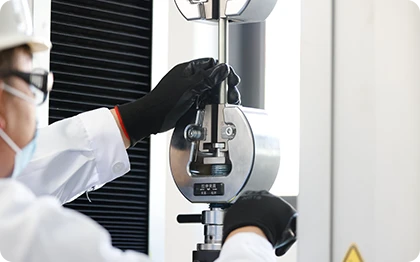

Key tests include: chemical composition (OES spectrometer), mechanical properties (yield strength, tensile strength, elongation), coating thickness measurement, adhesion verification, and salt spray resistance.

Explore our ISO-certified Lab

03

How to Choose the Right Pile Type

Pile Type

Best Soil Conditions

Typical Bearing Capacity

Installation Method

Concrete Required?

C-Beam

Clay, sand, loam

250kN

Embedded or bolt-connected

Optional

H-Beam

Rock, hard soil, compact loam

2100kN

Embedded with concrete pouring

Yes

Screw Pile

Clay, sand, loam, soft ground

>80 kN (soil-dependent)

Mechanically screwed in

No



Screw pile advantage:

No concrete curing time means installation proceeds immediately — a critical advantage on large utility-scale projects where pile driving and racking erection run in parallel.





04

Foundation Specification Parameters

Parameter

C-Beam Foundation

H-Beam Foundation

Screw Pile Foundation

Material

Q355B/Q420B Steel

ASTM A36, ASTM A572, EN 10025

Q355B/Q420B Steel

Anti-Corrosion Treatment

Hot-Dip Galvanizing>85um (ISO 1461)

Hot-Dip Galvanizing>85um (ISO 1461)

Hot-Dip Galvanizing>85um (ISO1461)

Section/Specification

Customizable

ASTM A6/A6M or EN10034

Customizable

Bearing Capacity

>50 kN

>100kN

>80 kN (soil-dependent)

Applicable Soil

Clay, sand, loam

Rock, hard soil, loam

Clay, sand, loam, soft soil

Installation Method

Embedded / bolt connection

Embedded with concrete

Screw-in, no concrete

Service Life

>25 years

>25 years

>25 years



Typical H-Beam Specifications for Solar Tracker Projects (ASTM Standard)

The following H-beam dimensions are commonly specified in utility-scale solar tracker projects per ASTM standards.

All sections are in-house fabricable; non-standard sections available upon request.







Height (mm)

Width (mm)

Web thickness (mm)

Flange thickness (mm)

Theoretic weight (kg/m)

W4

100×100

W4×13

106

103

7.1

8.8

19.3

W5

130×130

W5×16

127

127

6.1

9.1

23.8

W5

130×130

W5×19

131

128

6.9

10.9

28.1

W6

147×100

W6×7

147

100

3.3

4.2

14.0

W6

150×100

W6×8.5

148

100

4.3

4.9

13.0

W6

150×100

W6×9

150

100

4.3

5.5

13.5

W6

150×100

W6×12

153

102

5.8

7.1

18.0

W6

150×100

W6×16

160

102

6.6

10.3

24.0

W6

150×150

W6×15

152

152

5.8

6.6

22.5

W6

150×150

W6×20

157

153

6.6

9.3

29.8

W6

150×150

W6×25

162

154

8.1

11.6

37.1

W8

200×100

W8×10

200

100

4.3

5.2

15.0

W8

200×100

W8×13

203

102

5.8

6.5

19.3

W8

200×100

W8×15

206

102

6.2

8

22.5

W8

200×135

W8×14

203

134

5.0

6.4

21.4

W8

200×135

W8×18

207

133

5.8

8.4

26.6

W8

200×135

W8×21

210

134

6.4

10.2

31.3

W8

200×165

W8×24

201

165

6.2

10.2

35.9

W8

200×165

W8×28

205

166

7.2

11.8

41.7

W8

200×200

W8×31

203

203

7.2

11

46.1

W8

200×200

W8×35

206

204

7.9

12.6

52.0

W8

200×200

W8×40

210

205

9.1

14.2

59.0

W8

200×200

W8×48

216

206

10.2

17.4

71.0

W8

200×200

W8×58

222

209

13

20.6

86.0

W8

200×200

W8×67

229

210

14.5

23.7

100.0



Download Full H‑Beam Specification Table↓

05

Warranty

Product Quality Warranty:



15 years for all types of solar ground foundations, covering material defects and structural failure under normal installation and operating conditions (excluding damage caused by improper installation, abnormal external forces, soil settlement from external factors, or natural disasters).



Coating Warranty:



25 years for hot-dip galvanizing coating against obvious corrosion, peeling, or rust under normal use conditions.



Environmental Durability — Additional Reference:



For projects in highly corrosive environments, upgraded coating specifications are available. Contact our technical team for site-specific ecommendations.

06

Product Highlights

Soil-Matched Structural Design

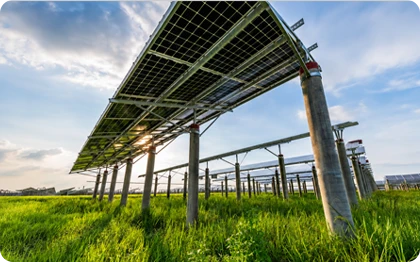

C-beam, H-beam, and screw pile variants are engineered to match distinct soil bearing capacity requirements — from soft clay (screw pile, no concrete) to hard rock (H-beam with concrete). Winture's engineering team reviews geo-technical reports and recommends the optimal pile type and embedment depth before order confirmation.

Full In-House CNC Fabrication

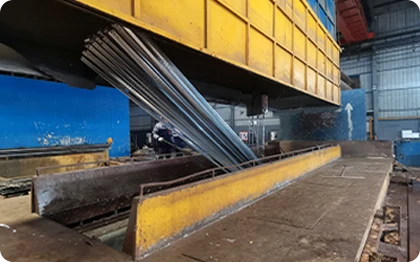

All C-channel, H-beam, and spiral pile sections are fabricated on Winture's in-house CNC production lines, maintaining strict dimensional tolerances across production batches. Consistent hole patterns and section geometry eliminate on-site adjustment and speed up pile driving.

Tier 1 Raw Materials, 100% Incoming Inspection

All steel is sourced exclusively from Tier 1 certified mills. Every incoming batch is tested in Winture's ISO-certified laboratory for chemical composition (via OES) and mechanical properties (yield strength, tensile strength, elongation) before entering the production floor. MTC documentation is provided with every delivery.

Hot-Dip Galvanizing to ISO 1461 — 2 Dedicated Lines

With two in-house galvanizing lines, Winture achieves coating thickness of 85μm to 120μm (or customized per project specification), using 99.999% pure zinc ingots. Galvanizing coating is validated by in-house salt spray testing, with a 25-year coating warranty against corrosion and peeling.

No On-Site Welding — Fast Installation

All pile-to-racking connections are bolt-only. No field welding is required, reducing skilled labor dependency on site and accelerating the installation cycle — a key advantage for large-scale ground-mounted projects running parallel pile driving and module mounting operations.

Environmentally Responsible, Long Service Life

All materials are non-toxic and compliant with RoHS and REACH requirements. A ≥25-year structural service life reduces total lifecycle cost and eplacement frequency, lowering the longterm environmental footprint of the solar installation.

07

Package & Shipment

All Winture ground foundation products undergo systematic laboratory testing — from incoming raw material coils through to finished galvanized sections.

Key tests include: chemical composition (OES spectrometer), mechanical properties (yield strength, tensile strength, elongation), coating thickness measurement, adhesion verification, and salt spray resistance.

Bundling

Components of the same type and section are bundled with galvanized steel strip banding, grouped by profile type and length for on-site sequence installation.

Color-coded bundle labels

Each bundle is labeled with installation zone code, profile type, and sequence number —matching the project BOM and installation drawing, minimizing on-site sorting on large farmland projects.

Pallet packaging

Bundled components palletized and stretch-wrapped for container stability.

Labeling

 Every package is labeled with product name, section designation, quantity, weight, batch number, and destination.

Container loading

Engineered for standard 20ft and 40ft containers; loading plans provided with each shipment.

08

Quality Management

Every agrivoltaic structure component passes Winture's full-cycle PDCA quality loop:

IQC on raw material

IPQC during forming and punching

FQC on finished sections

OQC before outgoing

Click through each stage to see the specific inspection parameters and acceptance criteria applied at IQC, IPQC, FQC, and OQC.

09

Manufacturing Capability

Winture holds ISO 9001, ISO 14001, and ISO 45001 certifications. Our solar mounting structure production equipment includes:

Equipment:

Equipment Quantity Function SOP
Slicing Machines 2 sets Coil slitting to production width

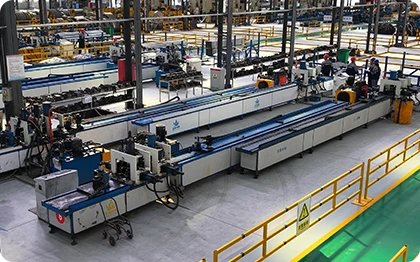

Forming Machines 15 sets Cold roll forming of C/U/O profiles
Punching Machines 19 sets CNC bolt hole punching
Stamping Machines 17 sets End stamping, bracket forming
Hot-Dip Galvanizing Lines 2 sets Shared with tower line

30,000 MT Monthly production capacity

Explore full manufacturing capabilities
