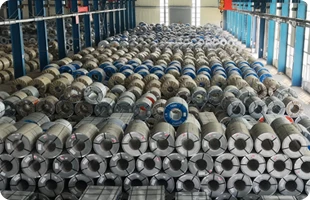

All Winture ground foundation products undergo systematic laboratory testing — from incoming raw material coils through to finished galvanized sections.
Key tests include: chemical composition (OES spectrometer), mechanical properties (yield strength, tensile strength, elongation), coating thickness measurement, adhesion verification, and salt spray resistance.
Explore our ISO-certified Lab

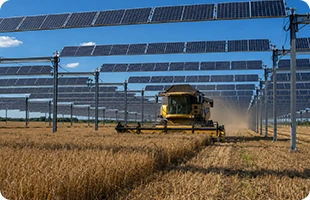

What Is an Agrivoltaic Mounting System?

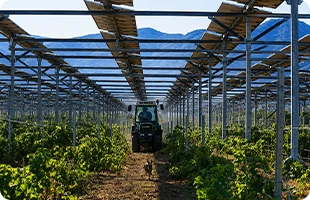

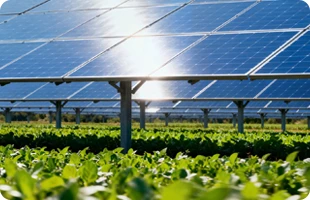

Agrivoltaic (solar agriculture) mounting systems are ground-mounted solar structures erected above productive farmland, enabling simultaneous crop cultivation and electricity generation on the same parcel of land. Unlike utility‑scale ground mounting — where the land beneath the panels is largely unproductive — an agrivoltaic system is designed to preserve (or even enhance) agricultural productivity while generating clean energy.
The key engineering challenge is the trade‑off between solar energy capture and crop light transmission. Winture addresses this through three configurable structural parameters:
Ground clearance:
Minimum 2.5m standard clearance; adjustable up to 4m for tall crops or full combine harvester access
Shading rate:
Configurable from 20% to 70% depending on crop light sensitivity — leafy greens tolerate more shading; grain crops require less
Row spacing:
Configurable from 20% to 70% depending on crop light sensitivity — leafy greens tolerate more shading; grain crops require less
What Makes Agrivoltaic Design Different from Standard Ground Mounting?
|
Design Factor
|
Standard Ground Mounting
|
Agrivoltaic System
|
|
Primary optimization target
|
Maximum panel yield
|
Crop yield + panel yield (dual)
|
|
Ground clearance
|
0.5‑1.0m (structural minimum)
|
2.5m (machinery clearance)
|
|
Row spacing
|
4‑6m (shading optimization)
|
6‑10m (agricultural machinery width)
|
|
Shading rate control
|
Not a design variable
|
Critical ‑ crop‑species specific
|
|
Post spacing
|
Standard grid
|
Adjusted for farm equipment turning radius
|
|
Land regulatory compliance
|
Solar land‑use permit
|
Dual agricultural + solar land‑use permit
|
Compatible Crops & Recommended Structural Configurations
Different crops have different light tolerance, machinery access, and growth
|
Crop Type
|
Recommended Shading Rate
|
Ground Clearance
|
Row Spacing
|
Special Consideration
|
|
Leafy vegetables(spinach, lettuce, herbs)
|
30-50%
|
>2.0m
|
>6m
|
Benefits from partial shading in hot climates; reduces irrigation need
|
|
Grain crops (wheat,corn, sorghum)
|
≤30%
|
>3.5m(combine access)
|
>8m
|
Full harvester clearance critical; minimal shading tolerance
|
|
Fruit orchards (apple,pear, berry)
|
20-40%
|
>3.0m
|
≥8-10m
|
Row spacing matched to orchard management lanes
|
|
Medicinal herbs & tea
|
40-60%
|
>2.0m
|
>6m
|
High shade tolerance; no machinery access required
|
|
Lavender/flowers
|
20-35%
|
>2.0m
|
>6m
|
Wind load consideration for tall-growing varieties
|
|

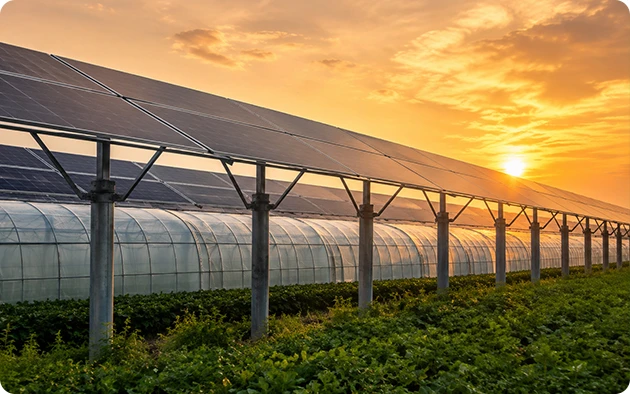

Greenhouse-integrated (ventilated)
|
30-70%
|
Panel at roof level
|
N/A
|
Custom frame integrated with greenhouse structure
|
Not sure which configuration fits your crop?
Submit your crop type, local latitude, and site dimensions
— Winture's agrivoltaic engineering team provides a recommended structural configuration before order confirmation.
Product Quality Warranty:
15 years for the solar agriculture mounting system, covering material defects and structural failure under normal installation and operating conditions (excluding damage caused by improper installation, abnormal external forces, agricultural machinery collision, or natural disasters).
Coating Warranty — ZAM Material (Zinc-Aluminum-Magnesium):
|
Atmospheric Corrosivity Class (ISO 12944-2)
|
C2
|
C3
|
C4
|
C5-L
|
C5-M
|
C5-H
|
|
Minimum coating weight, both sides (g/m²)
|
180
|
275
|
275
|
350
|
450
|
600
|
|
No Red Rust Warranty (years)
|
30
|
30
|
30
|
25
|
25
|
25
|
|
No Corrosion Perforation Warranty (years)
|
35
|
35
|
35
|
30
|
30
|
30
|
ZAM coated components provide self-healing protection at cut edges and punched holes — critical for structural
members in outdoor agricultural environments where edge corrosion typically initiates.
All Winture ground foundation products undergo systematic laboratory testing — from incoming raw material coils through to finished galvanized sections.
Key tests include: chemical composition (OES spectrometer), mechanical properties (yield strength, tensile strength, elongation), coating thickness measurement, adhesion verification, and salt spray resistance.

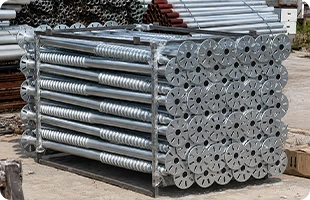

Bundling
All sections bundled by profile type and length using galvanized steel strip banding.
Zone-coded marking
Each bundle is labeled with installation zone code, profile type, and sequence number —matching the project BOM and installation drawing, minimizing on-site sorting on large farmland projects.
Pallet packaging
Bundled components palletized and stretch-wrapped for container stability.
Labeling
Product name, section designation, quantity, weight, batch number, destination.

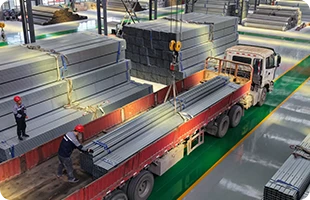

Container loading
Suitable for 20ft and 40ft standard containers; loading plans provided.
Every agrivoltaic structure component passes Winture's full-cycle PDCA quality loop:
View Quality Management Details
Click IQC / IPQC / FQC / OQC to review the specific inspection parameters applied at each stage.
Winture holds ISO 9001, ISO 14001, and ISO 45001 certifications. Our solar mounting structure production equipment includes:
Equipment:
| Equipment |
Quantity |
Function |
SOP |

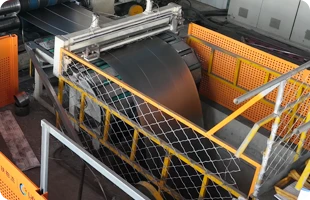

| Slicing Machines |
2 sets |
Coil slitting to production width |
|
| Forming Machines |
15 sets |

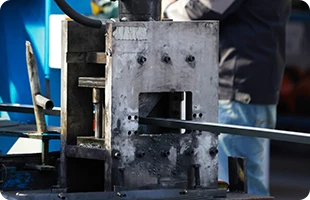

Cold roll forming of C/U/O profiles |
|
| Punching Machines |
19 sets |

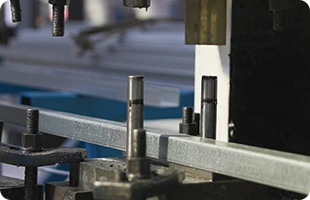

CNC bolt hole punching |
|
| Stamping Machines |
17 sets |
End stamping, bracket forming |
|

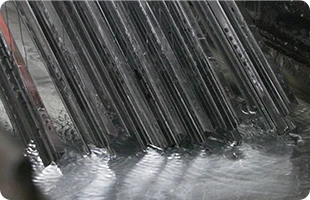

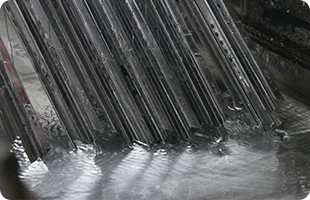

| Hot-Dip Galvanizing Lines |
2 sets |
Shared with tower line |
|
30,000 MT Monthly production capacity
Explore full manufacturing capabilities
