In the world of international procurement and engineering, clarity in standards is the difference between a successful project and a costly failure. For EPC contractors sourcing Winture transmission tower supplier components, the ASTM A653 standard is the primary benchmark for galvanized steel quality. However, choosing between G40, G60, and G90 is not just a matter of "more is better"—it is a strategic engineering decision.
Understanding the "G" Rating: The Math of Protection

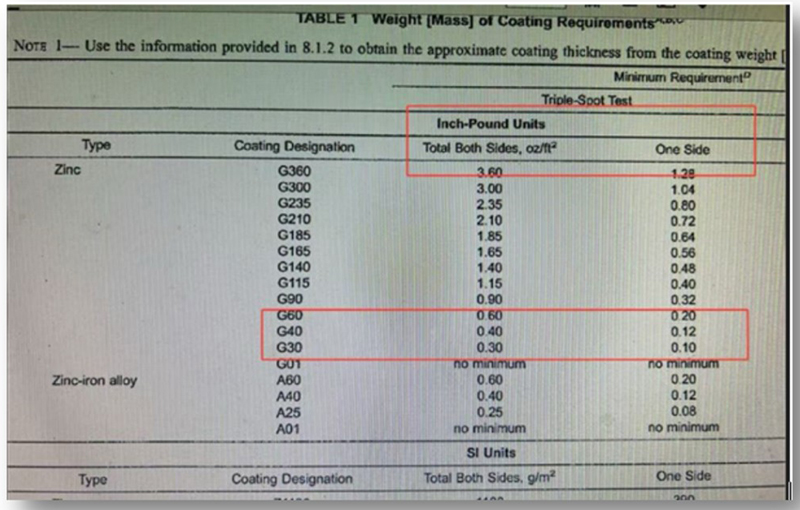

This table in the picture is a grading table for zinc coatings from the American standard ASTM A653.
The "G" rating in ASTM A653 refers to the minimum coating weight of zinc on the steel surface. At Winture, we provide clear [zinc coating thickness microns conversions to help project managers visualize the protection they are buying:
Standard Conversion: 1 oz/ft² ≈ 43.18μm (total thickness for both sides).
G40: 0.40 oz/ft² total (both sides) ≈ 5.18μm per side. This is often used for indoor applications or temporary structures.
G60: 0.60 oz/ft² total (both sides) ≈ 13μm per side. A standard for moderate environments.
G90: 0.90 oz/ft² total (both sides) ≈ 19.5μm per side. The industry standard for long-term outdoor infrastructure.
G90: The Gold Standard for Middle East EPC Projects
For projects in the Middle East, G90 galvanized coating is almost non-negotiable. Why? Because the rate of zinc consumption in saline, arid environments is significantly higher. A G90 coating provides approximately 50% more zinc "fuel" for [sacrificial anode protection] compared to G60.
In a typical desert environment, the corrosion rate of zinc might be 0.5μm to 1μm per year. A G90 coating (approx. 20μm per side) ensures that even after 20 years, a substantial layer of zinc remains to protect the [transmission tower steel]. Using G40 or G60 in such environments would result in premature red rust, compromising the structural safety of the entire grid.
G60 vs. G90: The India Market Context
In the India market, where cost optimization is often as critical as technical specifications, we frequently see a split. For inland projects in rural India with lower humidity and pollution levels, G60 galvanized coating can offer a balanced cost-to-performance ratio. However, for the coastal "corridors" where monsoon rains and salt spray are prevalent, [Winture transmission tower supplier] experts always recommend upgrading to G90 or even customized heavy coatings to meet international ASTM A653 coating requirements.
Cross-Standard Comparison: ASTM vs. EN and ISO
Global EPC projects often involve mixed standards. Project designers must understand how ASTM A653 vs EN10142 (or ISO 1461) align. While ASTM A653 typically applies to continuously galvanized sheet, the principles of zinc mass per area remain consistent. Winture’s technical team assists clients in "mapping" these standards to ensure that a design specified in European EN standards meets the equivalent (or superior) durability when using ASTM-compliant materials.
The Winture Quality Guarantee
Selecting the right coating is only half the battle; ensuring the coating is consistent is the other half. Winture galvanized steel undergoes rigorous testing to ensure that the "G" rating specified is the "G" rating delivered. We use magnetic flux and eddy current testing to verify that zinc coating thickness microns are uniform across the entire surface of the tower members, including the critical edges and corners.
Conclusion Decoding ASTM A653 coating standards is about matching the lifespan of your infrastructure to the reality of its environment. Whether you require the robust protection of G90 or the optimized value of G60, Winture provides the technical expertise to guide your procurement.
